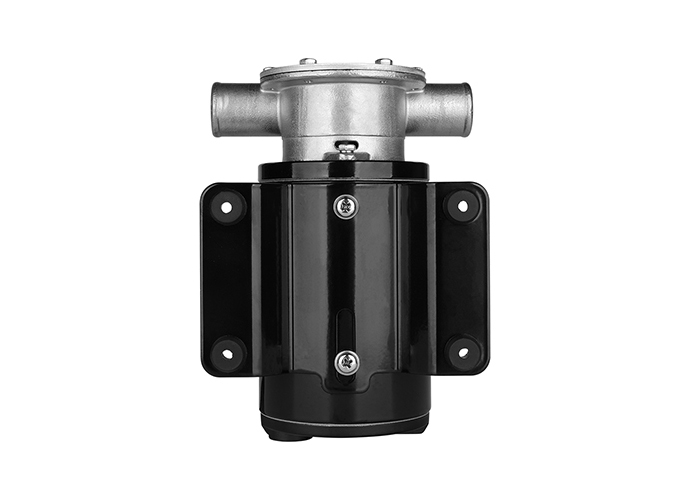

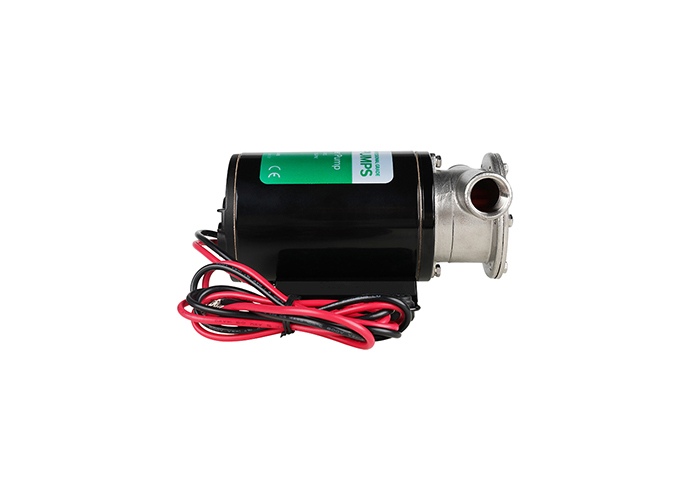

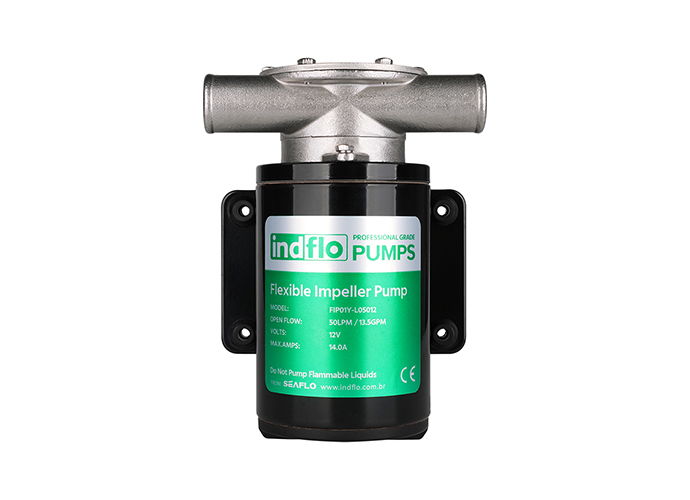

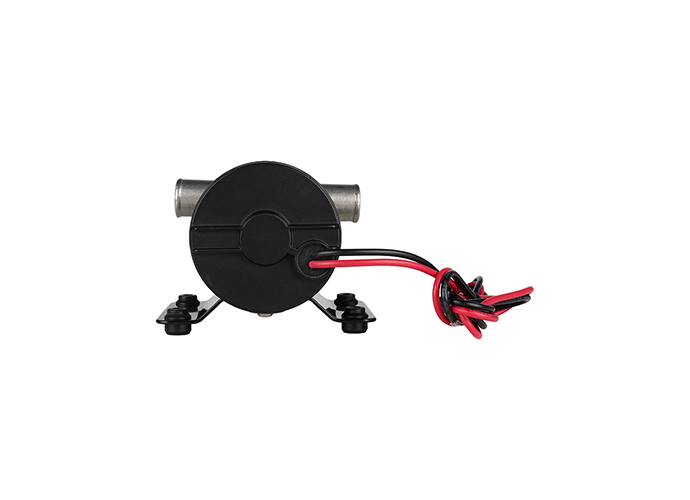

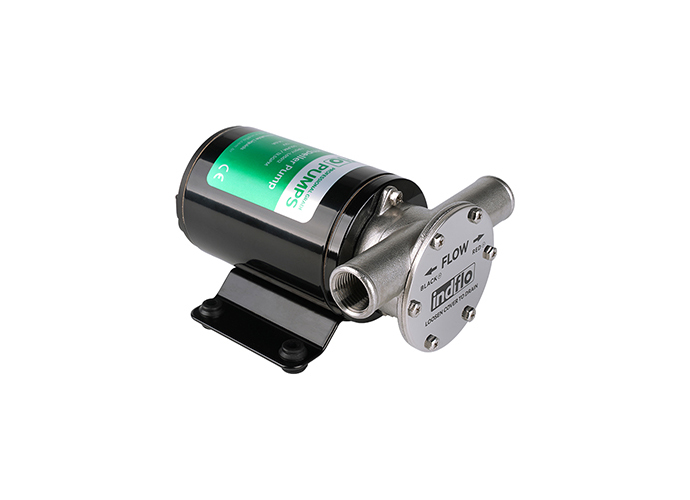

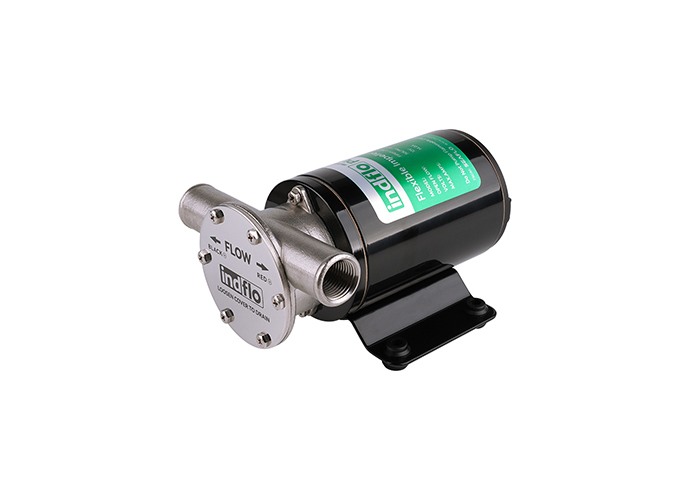

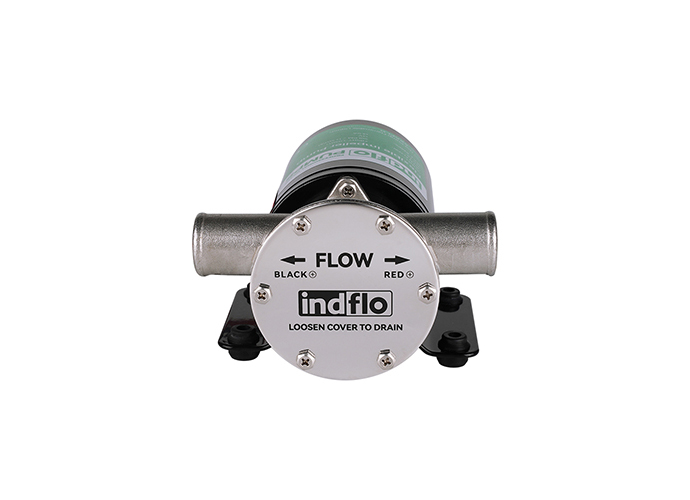

50L/M Flexible Impeller Pump 01Y Series

Pressure wave pumps, Self-priming centrifugal pumps, Flexible impeller pumps

Standard Model: FIP01Y-L05012

Voltage：12V

GPM/LPM: 13.5/50

Impeller: TPU

Head: 2m/6.5ft

Amp(A): 14

Ports: 1/2"NPT











Email Consultation Related Videos

Relevant Part

50L/M Flexible Impeller Pump 01Y Series

Product Details

Product Introduction:
The INDFLO 01Y series flexible impeller pump has extremely strong performance, with a maximum flow rate of 13.5GPM. Configuring a reverse polarity switch can complete filling or emptying tasks in a short period of time. High quality polyurethane impeller material, with good wear resistance, can be widely used for the extraction of fresh water, seawater, sewage, pesticides, etc. Its high-performance motor ensures stability and high performance, and is equipped with built-in thermal protection function.
Features and Advantages:
  • Reversible pump both fills and empties ballast tanks
  • 13.5 GPM / 50 LPM flow rate
  • Self-priming to 6.5 ft. (2m)

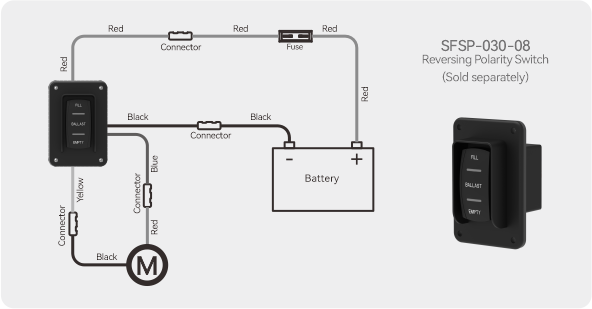

  • Use with Reversing Polarity Switch to fill or empty ballast tanks
  • High performance and output of intermittent work cycles
  • Improved impeller designed for run dry for short duration
  • Built in thermal overload protection, automatically reset after cooling
Technical specification:
Model Voltage GPM/LPM Impeller Head Amp(A) Ports
FIP01Y-L05012 12V 13.5/ 50 TPU 2 m / 6.5 ft 14 1-1/2″NPT
FIP01Y-L05024 24V 13.5/ 50 TPU 2 m / 6.5 ft 7 1-1/2″NPT

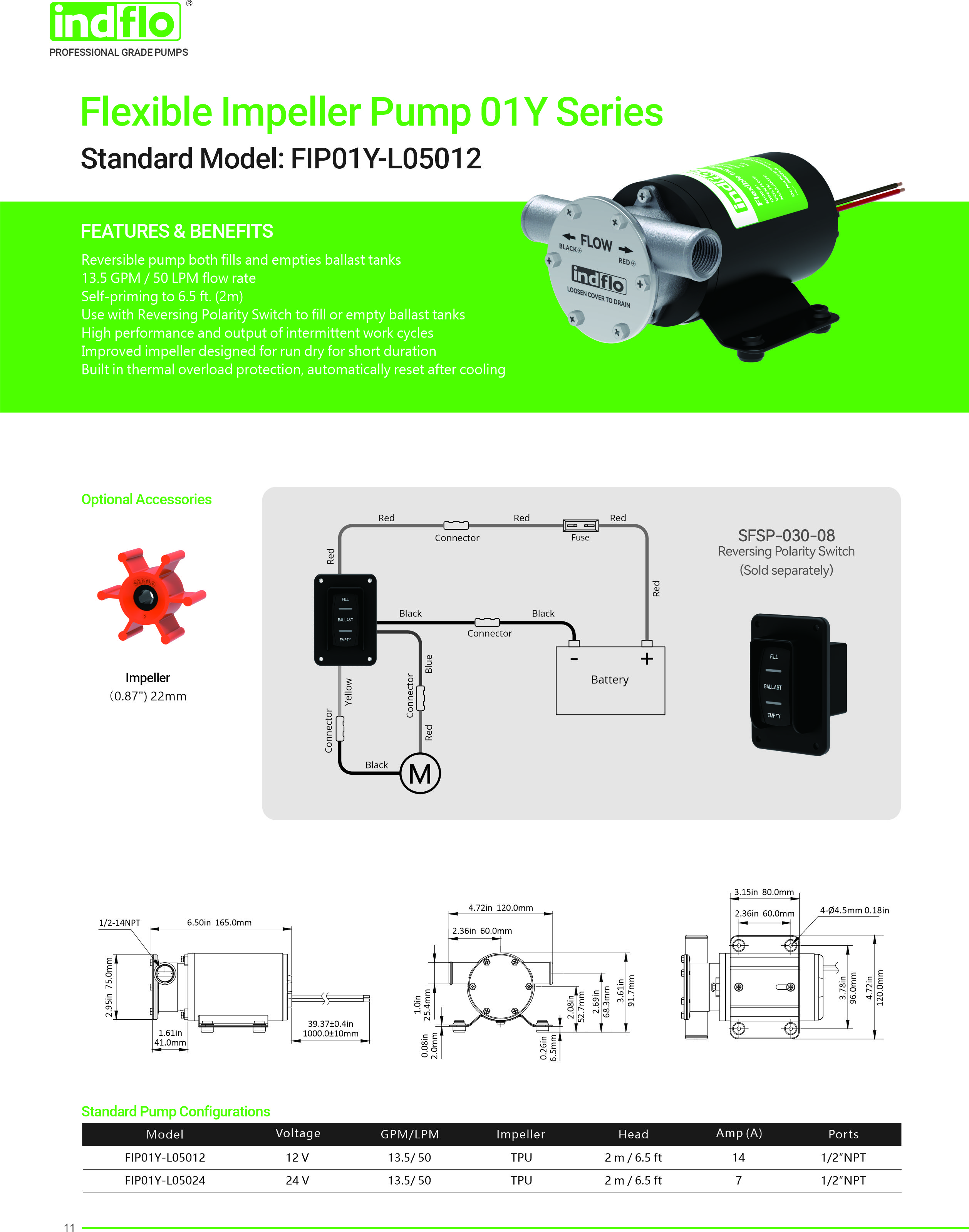

Dimension Parameter:

Performance Curve:

Shipping Information:
Content Parameters
Unit Weight 0.30 Kg (0.66 lbs.)
Single Unit Packing Size (LxWxH) 9cmx21cmx07cm(1.42x827x028)
Single Unit Packing Weight 0.36 Kg (0.79 lbs.）
Outer Box Packing Size (LxWxH) 52.5 cm x 30 cm x 26.5 cm (20.67"x 11.81"x 10.43")
Number of Outer Boxes 20 units
Container Weight 8.7 Kg (19.18 lbs.)
Container Volume 0.042m³
