SFPR-41A-01 Pressure Regulating Valve Series

Pressure Gauge is optionally

Model: SFPR-41A-01

Ports: 3/4"QUICK ATTACH

Pump: 41/43/52series pump

Email Consultation Related Videos

Product Details

Product Introduction:

INDFLO regulator is specialized for use on ATV sprayers for pressure relief and flow relief. Designed with four different types of fittings to match different models of INDFLO pumps.

Features and Advantages:

Laser engraved dial readings are clear, scale never fall off
High-strength PA reinforcement is used for the pressure regulator valve housing; the POM material with
the best wear resistance is used for the valve core and the pointer to make the product longer service life
Unique product design, the damping knob has a good adjustment feel
Regulator can be equipped with high-precision seismic pressure gauge, and can best show the pressure to end users
All types of connectors are quick-mount connectors for user-friendliness

Technical specification:

Model	Ports	Pump
SFPR-41A-01	3/4"QUICK ATTACH	41/43/52series pump

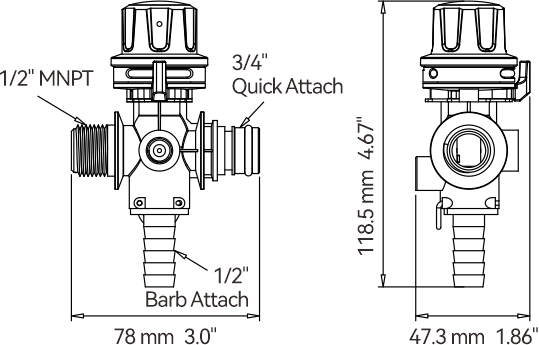

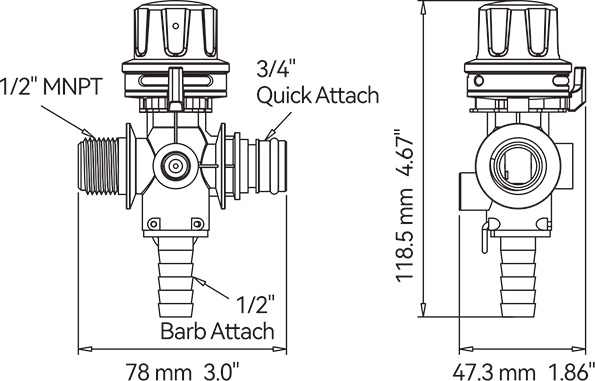

Dimension Parameter:

Shipping Information:

Content	Parameters
Unit Weight	0.30 Kg (0.66 lbs.)
Single Unit Packing Size (LxWxH)	9cmx21cmx07cm(1.42x827x028)
Single Unit Packing Weight	0.36 Kg (0.79 lbs.）
Outer Box Packing Size (LxWxH)	52.5 cm x 30 cm x 26.5 cm (20.67"x 11.81"x 10.43")
Number of Outer Boxes	20 units
Container Weight	8.7 Kg (19.18 lbs.)
Container Volume	0.042m³
