VS03 Series Trailer Sprayer 50L 80PSI

High Pressure Sprayer, Pesticide Sprayer, Garden Sprayer, Agricultural Automatic Sprayer

15G Series Products

Model: VS03-G1535

Tank Capacity: 15 GAL (50L)

Spray gun: SFSG-S02
Work Pressure: 80 PSI

Matched Pump: DP35Y-02010012

Open flow:  2.0GPM / 7.6LPM

Shut-off Pressure: 100PSI / 6.9Bar

Pressure Regulating Valve: YES

Relevant Part

Product Details

Product Introduction:

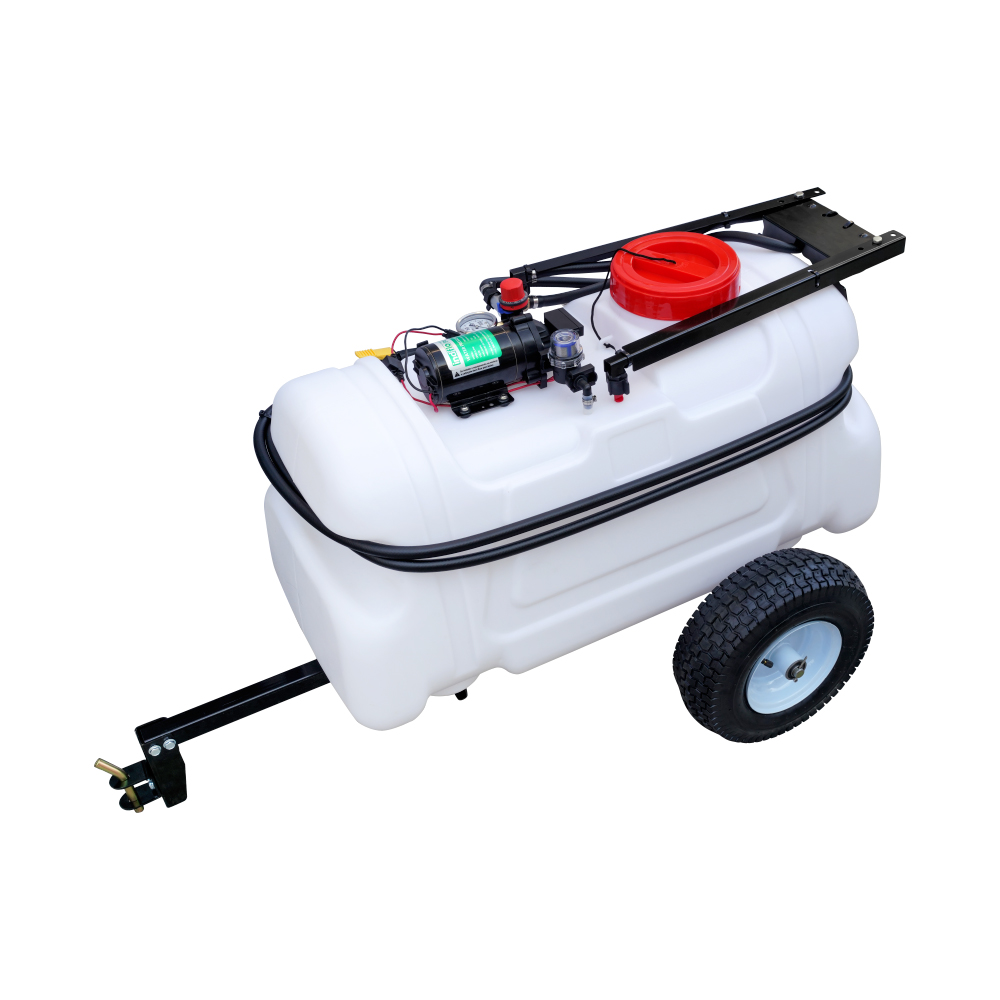

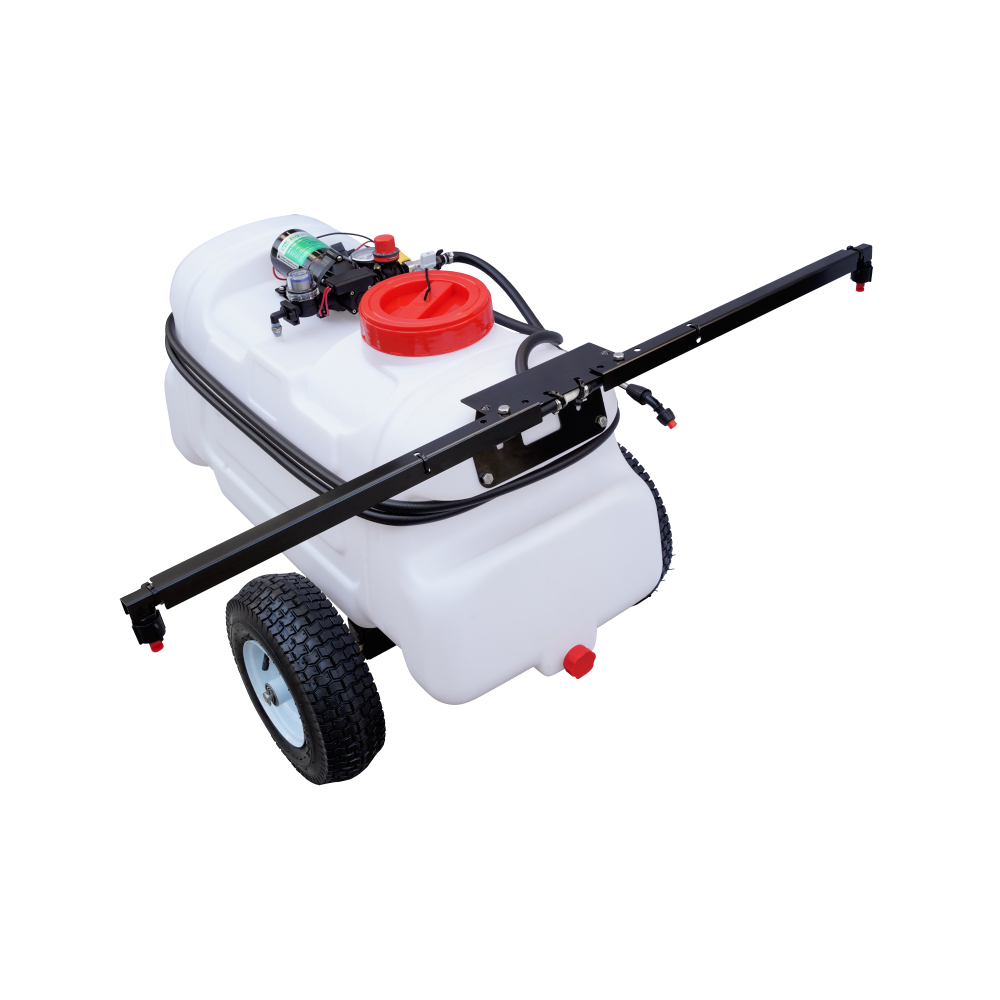

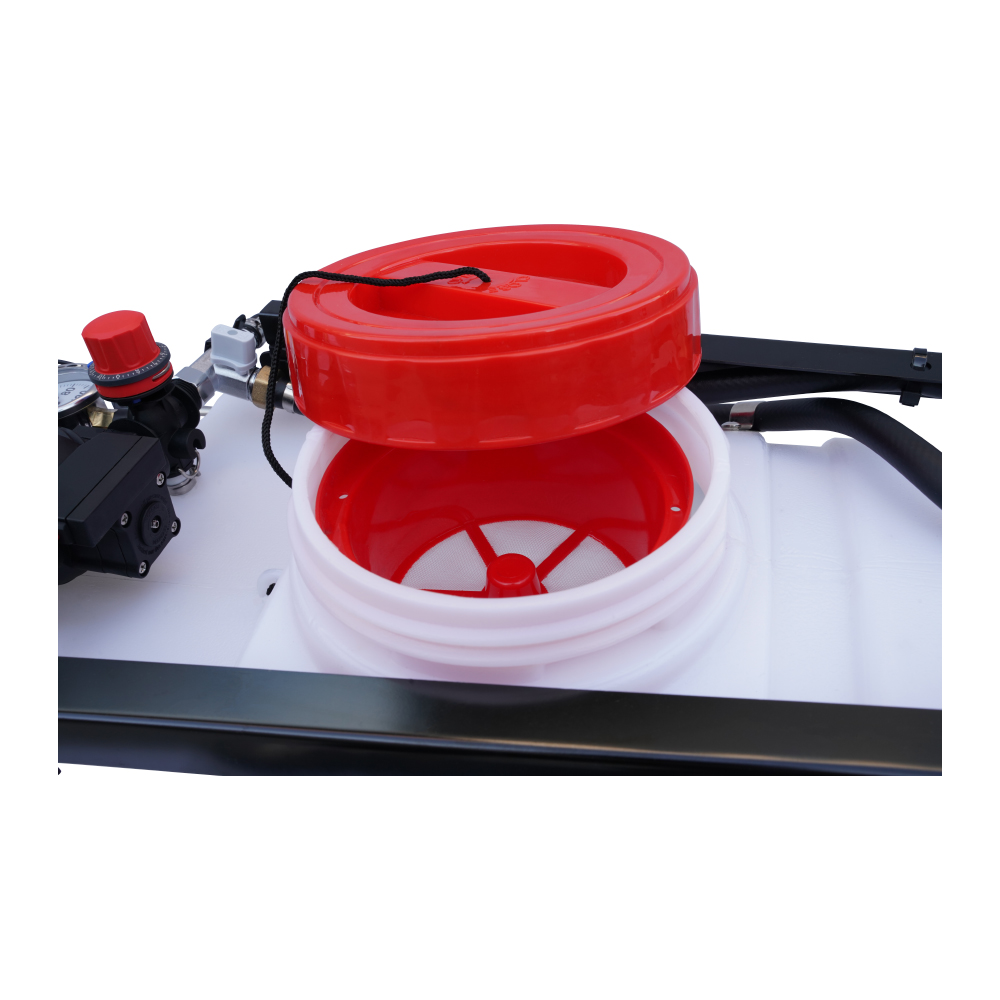

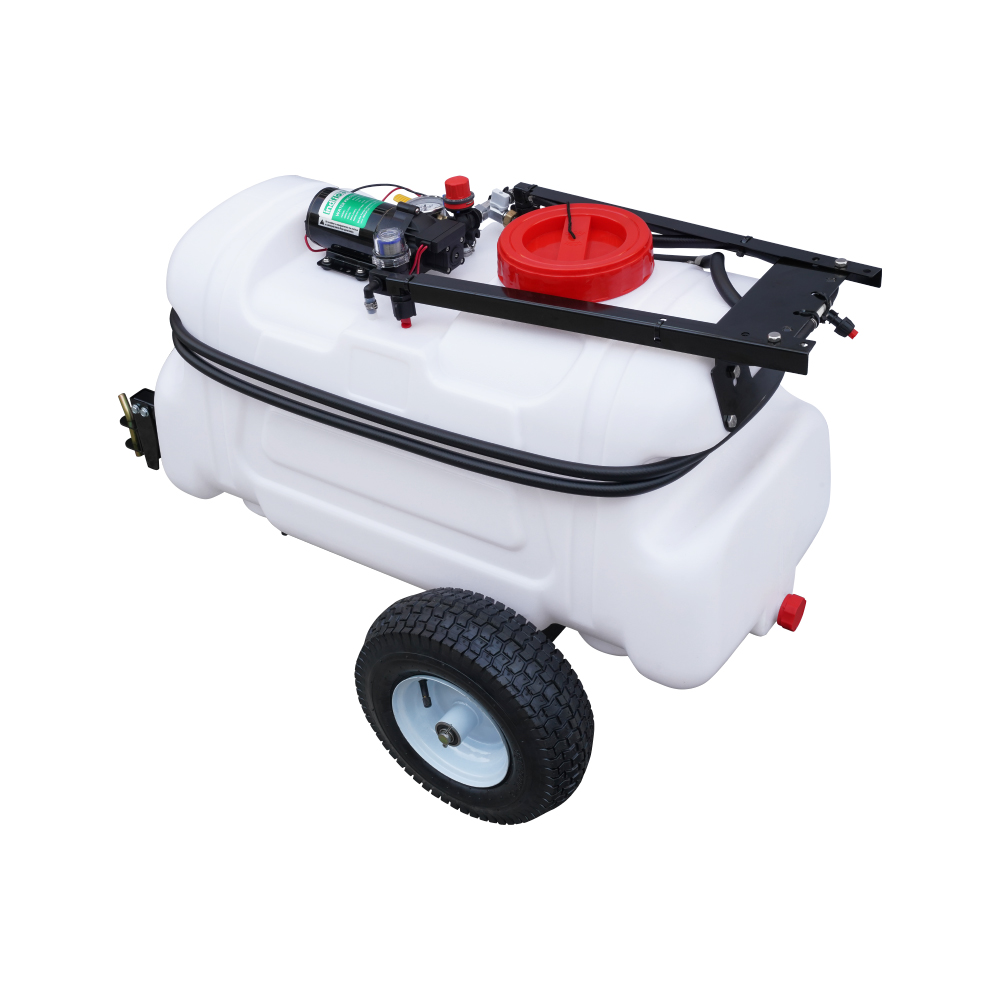

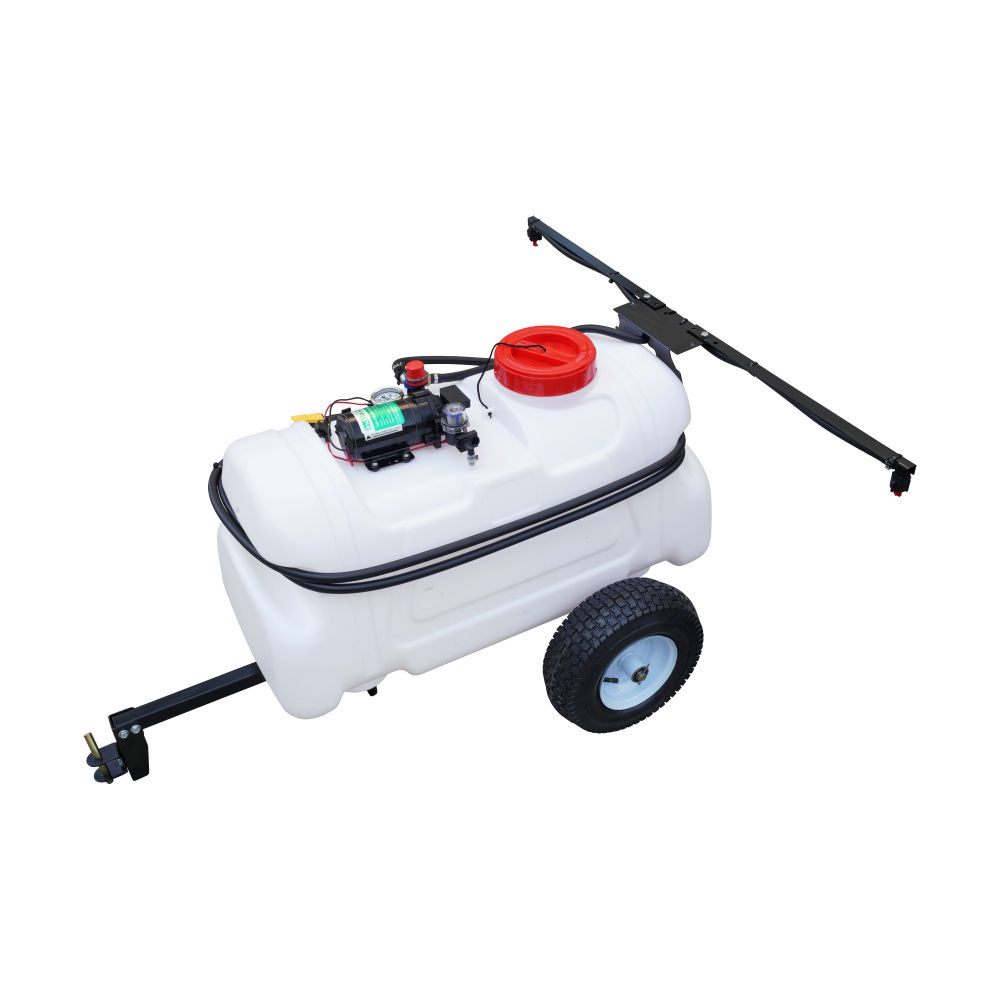

INDFLO15/25 gallon trailer spray is equipped with professional grade agricultural pump with in-line fuse. UV resistant high-strength HDPE water bucket, paired with a large water inlet cap. The multi spray arm can be freely adjusted, making it easier to complete larger area operations.The multi spray width reaches 3080mm and the sprayradius reaches 1000mm. Small vehicle mounted spraying equipment, which is very suitable for spraying, killing, and irrigation of lawn, garden and shrub, as well as for washing fences, railings, glass, floors, etc.


Features and Advantages:

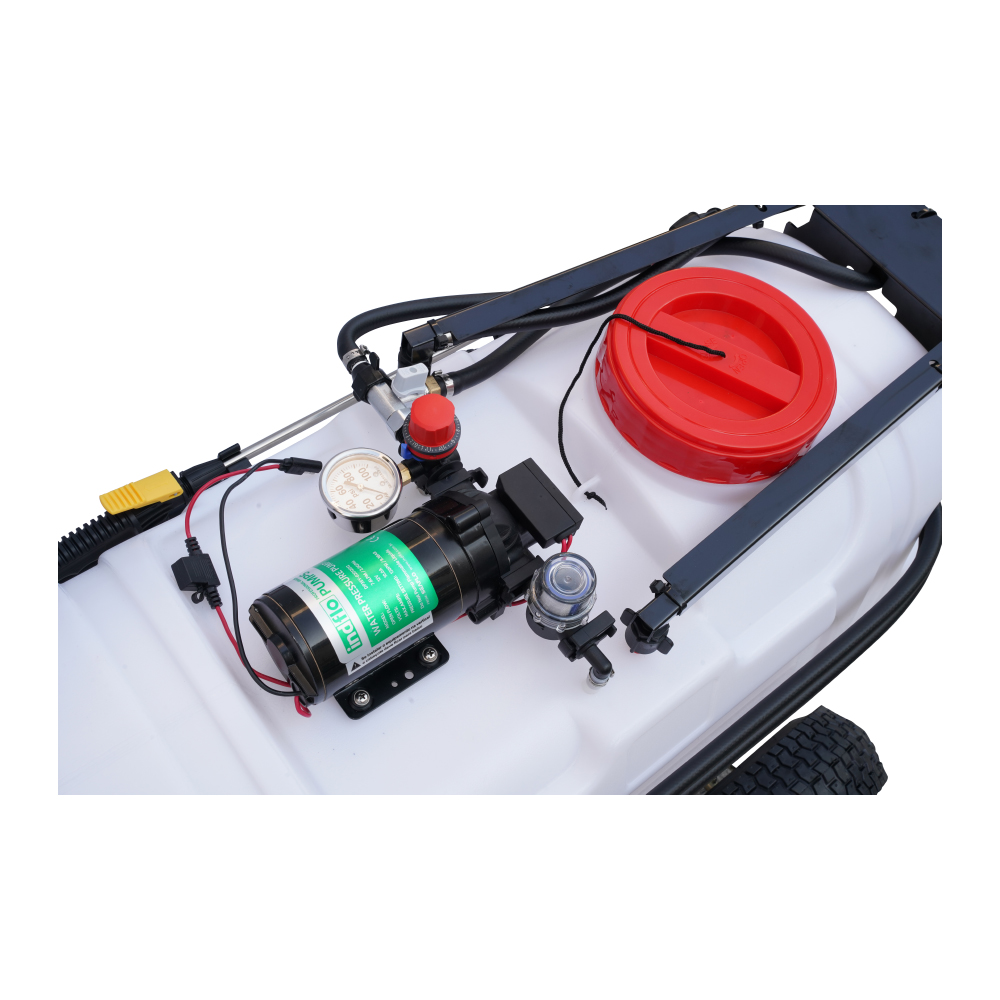

  • High performance pump with inline fuse protection.
  • IP54 protection for durability long time use.
  • Running dry will not damage pump or limit reliability.
  • Durable15 gallon anti-UV anti-aging PE tank.
  • 3 filters prevent debris from blocking pump.
  • The external filter is easy to disassemble and clean.
Technical specification:
Model Volume Spray Gun atched Pump Open Flow Shut Off Pressure Pressure Regulating Valve
VS03-G1535 15G/50L SFSG-S02 DP35Y-02010012 2.0GPM/7.6LPMYES NO
VS03-G2535 25G/100L SFSG-S02
