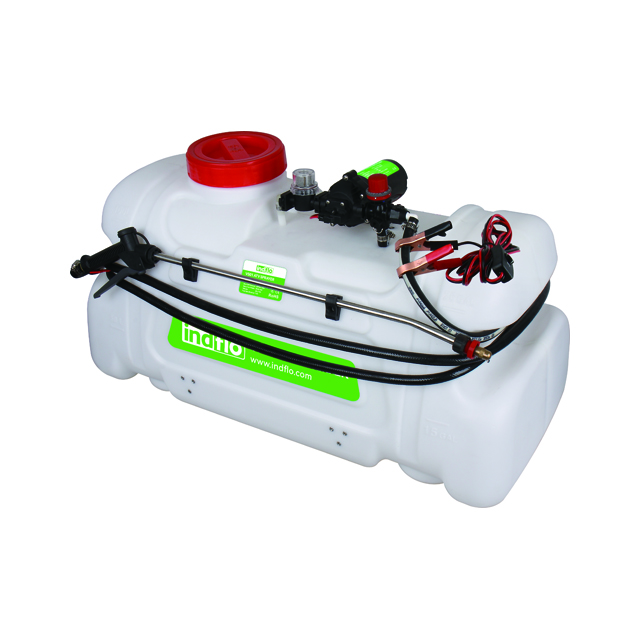

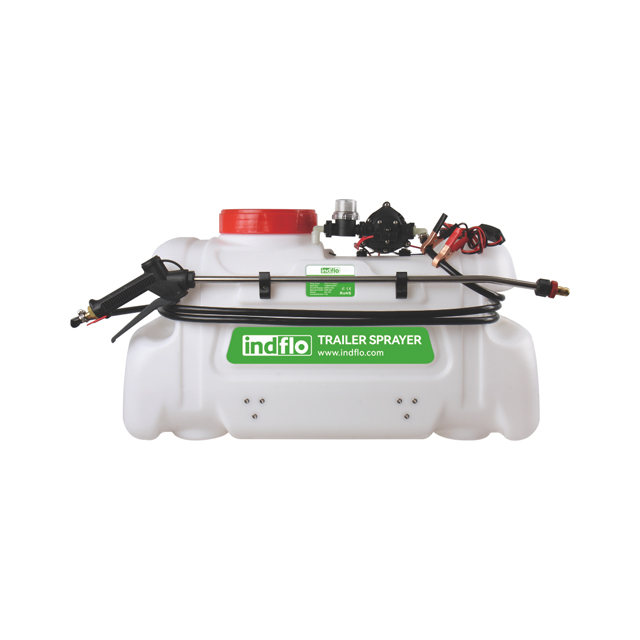

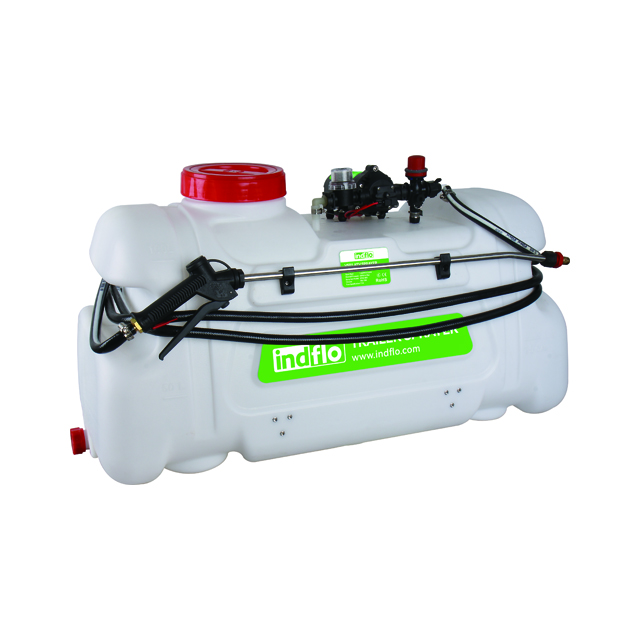

VS01 Series 12V ATV Sprayer 50L

High Pressure Sprayer, Pesticide Sprayer, Garden Sprayer, Agricultural Automatic Sprayer

Model: VS01-G1523

Tank Capacity: 15 GAL (50L)

Spray gun: SFSG-S02

Open flow:  1.0GPM / 3.8LPM

Shut-off Pressure: 80PSI / 5.5Bar

Matched Pump: DP23Y-01008012

Pressure Regulating Valve: NO

Product Details

Product Introduction:

The INDFLO 12 Volt Sprayers cover from 50L to 100L capacity HDPE stabalised polyethlyene tank and are supplied asa self contained complete unit. These new INDFLO 12V sprayers deliver constant flow, no pulsation and the highest pressure for distance spraying.
It is the ideal tool for general maintenance such as weeding, on-site spraying, fence cleaning, and path cleaning. It is suitable for installation on ATVs, RVs, ive news trucks or similar mobile vehicles. The robust HDPE material ensures longer life.



Features and Advantages:
  • Agricultural spray pump with multiple protections.
  • High quality HDPE polyethlyene tank.
  • New appearance and shape, more suitable for use and more convenient for transportation.
Technical specification:
Model Volume Open Flow Shut Off Pressure Matched Pump Pressure Regulating Valve Spray Gun Spray Nozzle
VS01-G1523 15G/50L 1.0GPM/3.8LPM 80PSI/5.5Bar DP23Y-01008012 NO SFSG-S02

SFSN-D2002

SFSN-D1002

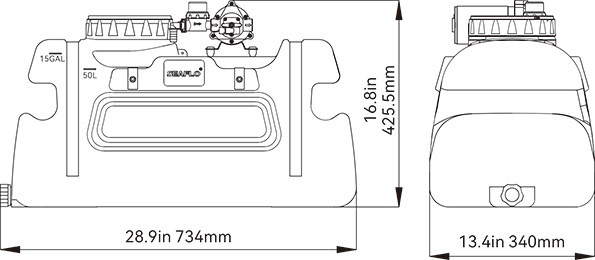

Dimension Parameter:


Standards and Customization:
Model Volume Open Flow Shut Off Pressure Matched Pump Pressure Regulating Valve Spray Gun Spray Nozzle
VS01-G1523 15G/50L 1.0GPM/3.8LPM 80PSI/5.5Bar DP23Y-01008012 NO SFSG-S02

SFSN-D2002

SFSN-D1002

VS01-G1522 15G/50L 1.5GPM/5.7LPM 100PSI/6.9Bar DP22Y-01510012 YES SFSG-S02 SFSN-D2002

SFSN-D1002

VS01-G1535 15G/50L 2.0GPM/7.6LPM 100PSI/6.9Bar DP35Y-02010012 YES SFSG-S02 SFSN-D2002
SFSN-D1002

Shipping Information:
