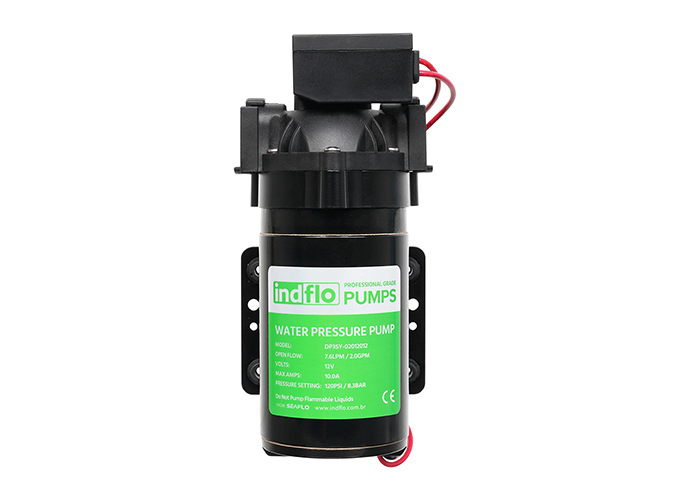

Standard Model: DP35Y-02012012
Voltage：12V
Open Flow：2.0GPM/7.6LPM
Max Draw：10.0A
Shut-off Pressure：120 PSI / 8.3 BAR

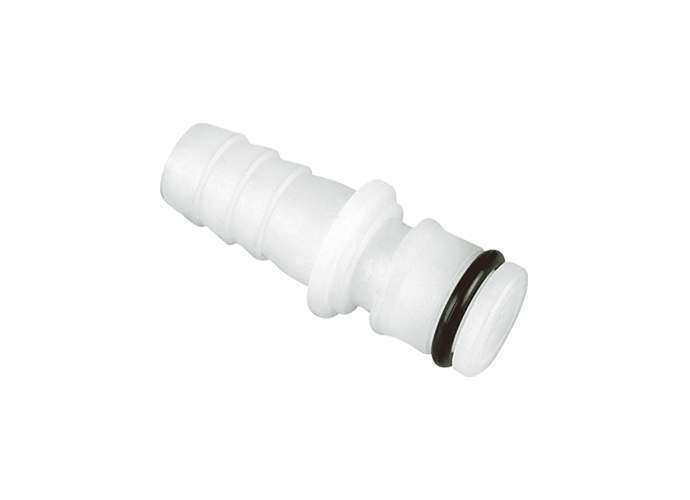

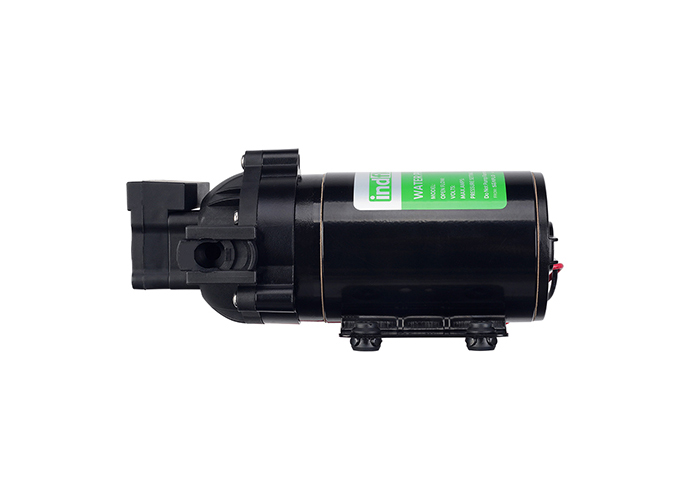

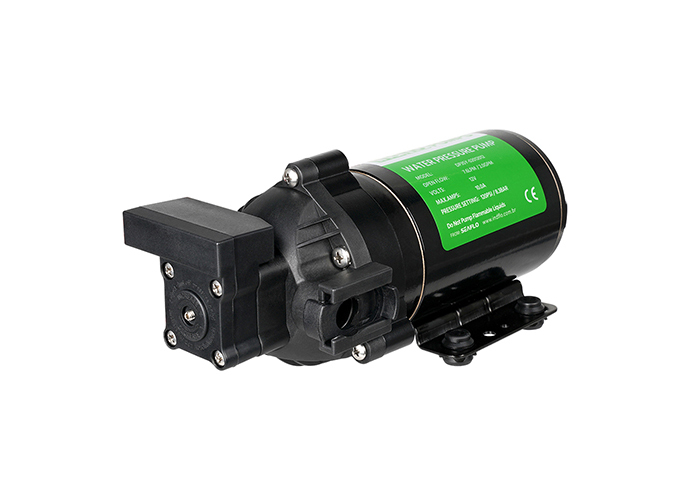

INDFLO 35Y series on demand high performance diaphragm pump. It is a professional grade water pump that has been fully upgraded on traditional standard pumps. It is more suitable for professional scenarios and high performance requirements. Equipped with fuse, quick connection terminal, high-quality corrosion-resistant valve material, waterproof grade can reach IP54. Good self-priming ability, can dry run without damage. The whole machine adopts modular design and provides a variety of connectors options, which is easy to install and replace. 35Y series booster pump is small in size and low in power consumption. It can be widely used in liquid transfer, spraying, circulation, filtration and distribution.The flow and pressure can be customized on demand, with a maximum custom protection pressure of 220PSI depending on the working flow requirements.
| Model | Voltage | Open Flow | Max Amps | Shut-off Pressure |
| DP35Y-02002012 | 12V | 2.0GP M/7.6LPM | 10.0A | 120PSI/8.3BAR |
| DP35Y-02002024 | 24V | 2.0GP M/7.6LPM | 6.0 A | 120PSI/8.3BAR |
2.0GPM/120PSI

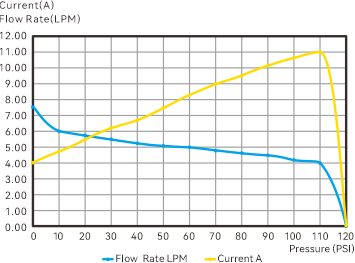

| Pressure | Flow Rate | Current | ||
| PSI | BAR | GPM | LPM | APMS |
| 0 | 0 | 1.98 | 7.50 | 4.0 |
| 10 | 0.7 | 1.61 | 6.10 | 4.7 |
| 20 | 1.4 | 1.51 | 5.72 | 5.5 |
| 30 | 2.1 | 1.43 | 5.42 | 6.2 |
| 40 | 2.8 | 1.39 | 5.26 | 6.8 |
| 50 | 3.4 | 1.34 | 5.06 | 7.5 |
| 60 | 4.1 | 1.30 | 4.92 | 8.3 |
| 70 | 4.8 | 1.26 | 4.76 | 8.9 |
| 80 | 5.5 | 1.23 | 4.64 | 9.5 |
| 90 | 6.2 | 1.18 | 4.48 | 10.1 |
| 100 | 6.9 | 1.08 | 4.10 | 10.6 |
| 110 | 7.6 | 1.02 | 3.85 | 11 |
| 120 | 8.3 | 0 | 0 | 0 |
| Content | Standard parameters | Customizable parameters | |
| Voltage | DC 12V | DC 24/36/48V, AC 115V/230V | |
| Open flow | 2.0GPM / 7.6LPM | 1.0/1.2/1.4/1.6/1.8GPM | |
| Shut-off pressure | 120PSI / 8.3BAR | 60/80/100/120/140/160PSI | |
| Liquid | Pesticide | Freshwater | Fuel Oil |
| Valve material | Viton | EPDM | S-Viton |
| Diaphragm material | TPV | TPV | S-Viton |
| Content | Parameters |
| Unit Weight | 0.30 Kg (0.66 lbs.) |
| Single Unit Packing Size (LxWxH) | 9cmx21cmx07cm(1.42x827x028) |
| Single Unit Packing Weight | 0.36 Kg (0.79 lbs.） |
| Outer Box Packing Size (LxWxH) | 52.5 cm x 30 cm x 26.5 cm (20.67"x 11.81"x 10.43") |
| Number of Outer Boxes | 20 units |
| Container Weight | 8.7 Kg (19.18 lbs.) |
| Container Volume | 0.042m³ |
