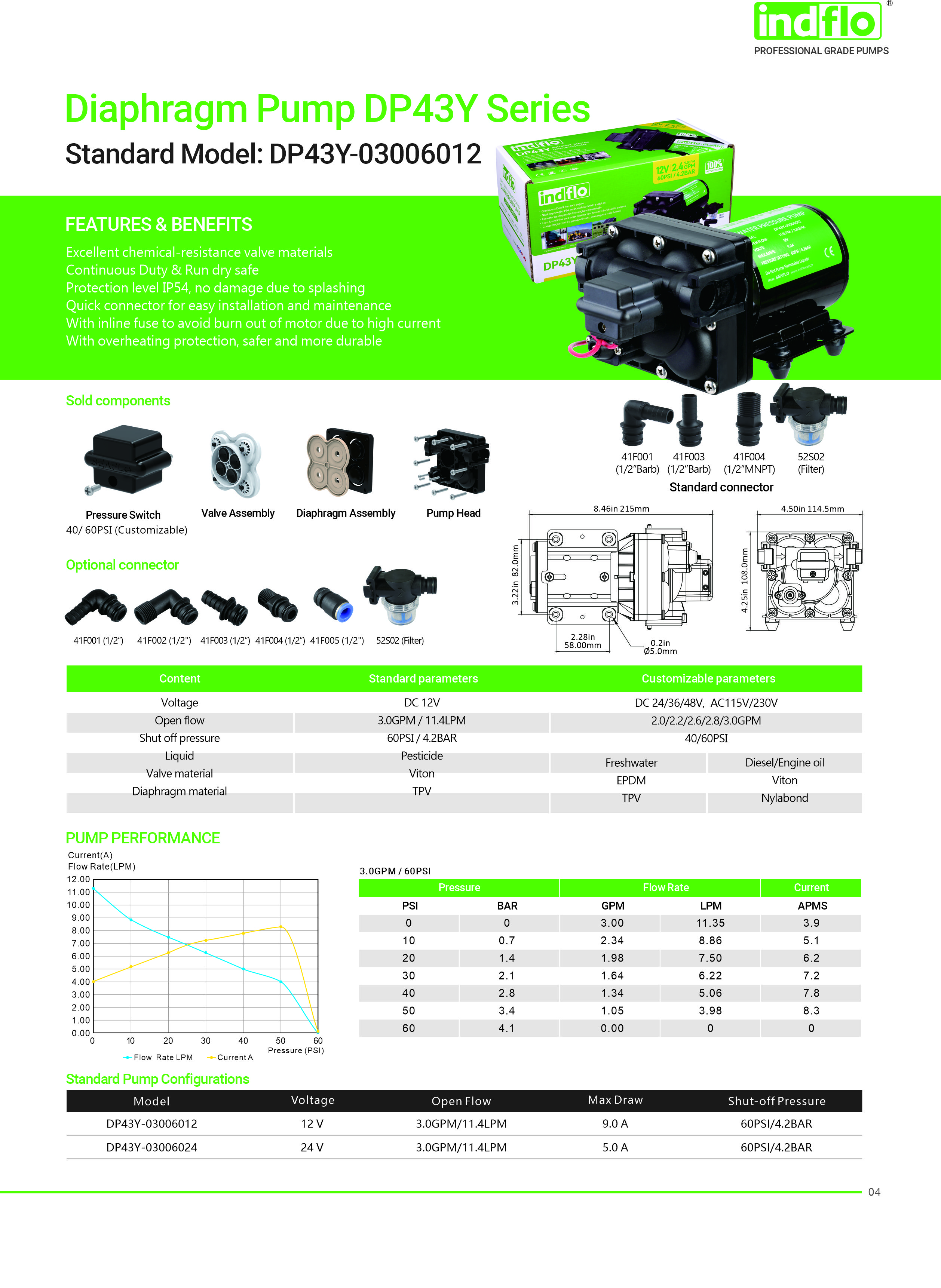

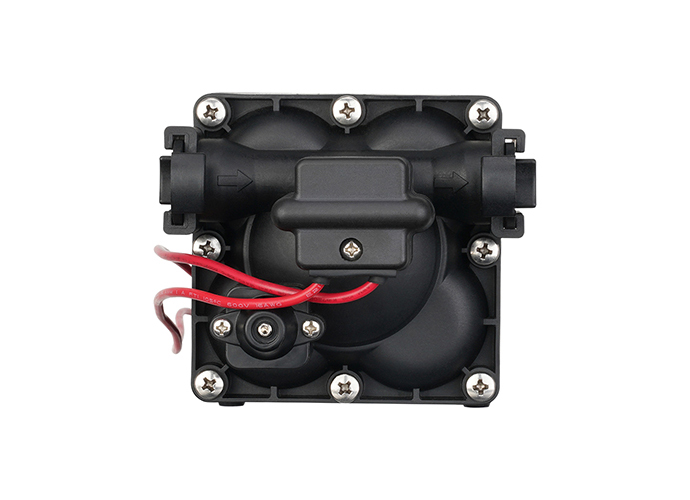

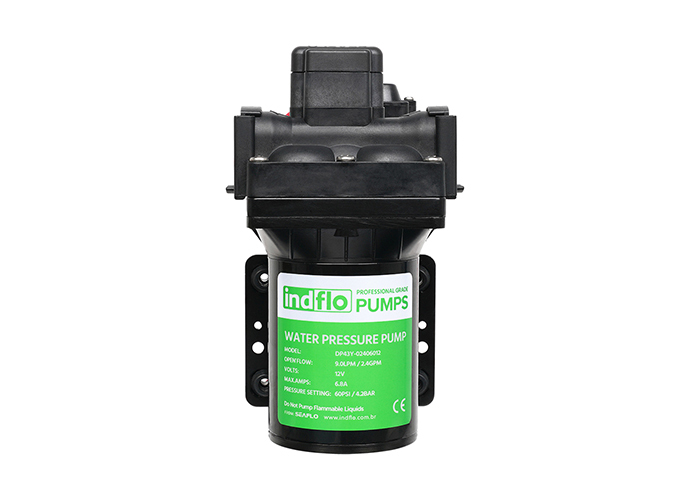

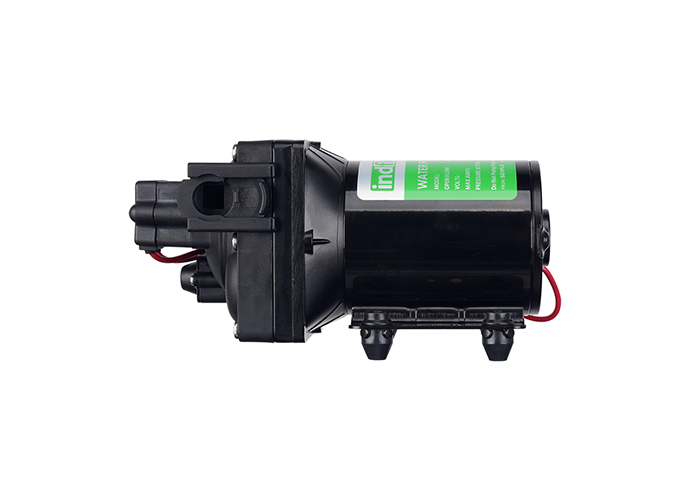

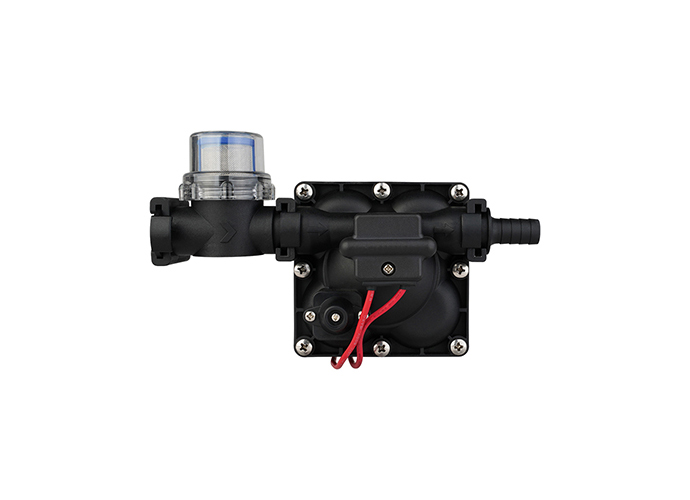

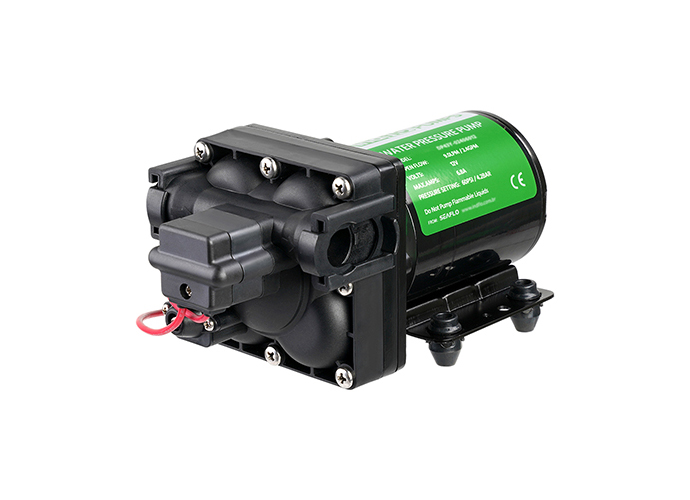

Diaphragm Pump DP43Y Series

Miniature DC pumps, Self-priming booster pumps, Clear water booster pumps,Demand Pumps,12V Pumps,Pressure control pump

Standard Model: DP43Y-03006012

Voltage:12V

Open Flow:3.0GPM/11.4LPM

Max Draw:9.0A

Shut-off Pressure:60 PSI / 4.2 BAR

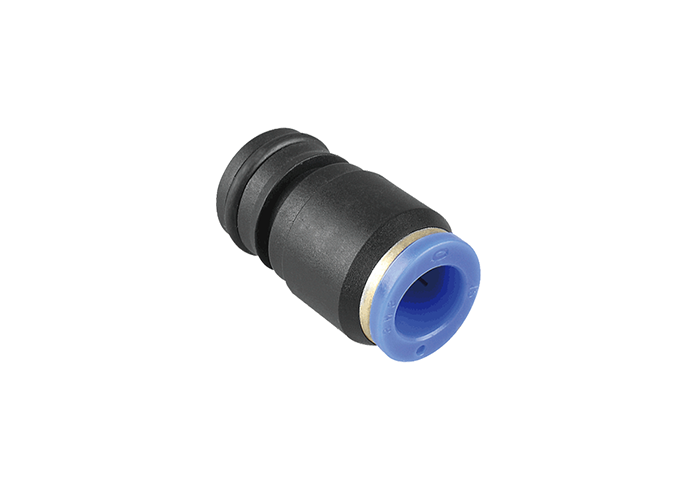

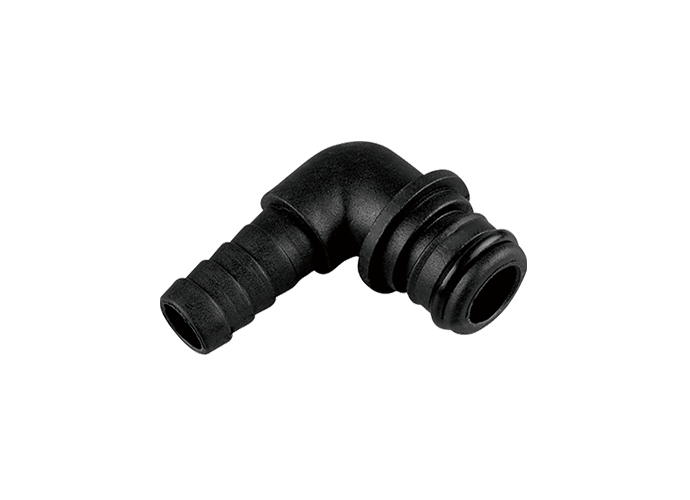

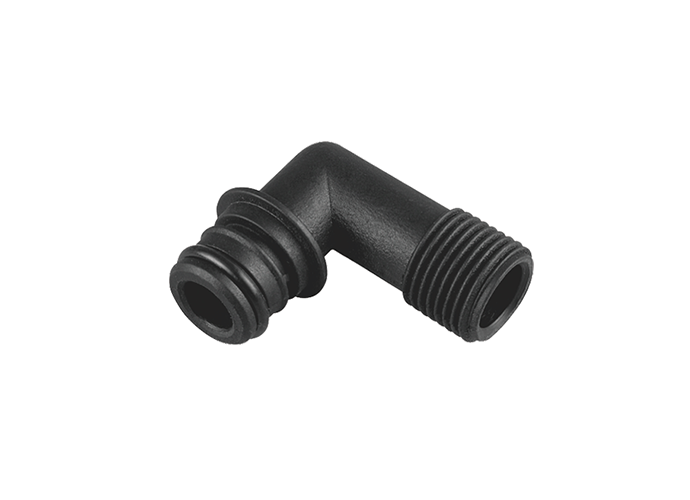

Relevant Part

Product Details

Product Introduction:

INDFLO 43Y series on demand high performance diaphragm pump. It is a professional grade water pump that has been fully upgraded on traditional standard pumps. It is more suitable for professional scenarios and high performance requirements. Equipped with fuse, quick connection terminal, high-quality corrosion-resistant valve material, waterproof grade can reach IP54. Good self-priming ability, can dry run without damage. The whole machine adopts modular design and provides a variety of connectors options, which is easy to install and replace. 43Y series booster pump is small in size and low in power consumption. It can be widely used in liquid transfer, spraying, circulation, filtration and distribution.The flow and pressure can be customized on demand, with a maximum custom protection pressure of 70PSI depending on the working flow requirements.

Features and Advantages:
  • Excellent chemical-resistance valve materials
  • Continuous Duty & Run dry safe
  • Protection level IP54, no damage due to splashing

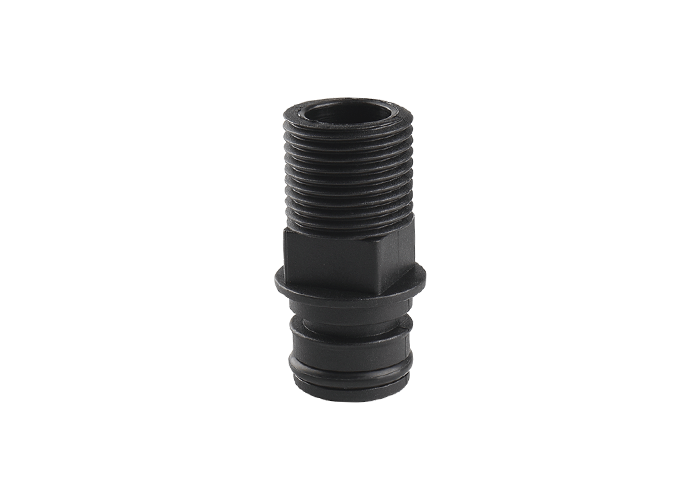

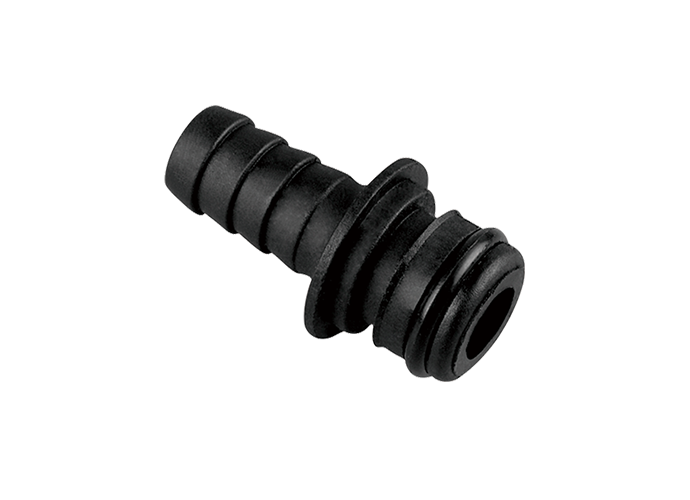

  • Quick connector for easy installation and maintenance
  • With inline fuse to avoid burn out of motor due to high current
  • With overheating protection, safer and more durable
Technical specification:
Model Voltage Open Flow Max Amps Shut-off Pressure
DP43Y-03006012 12V 3.0GP M/11.4LPM 9.0A 60PSI/4.2BAR
DP43Y-03006024 24V 3.0GP M/11.4LPM 5.0 A 60PSI/4.2BAR

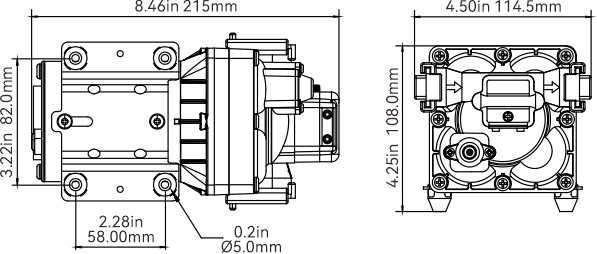

Dimension Parameter:

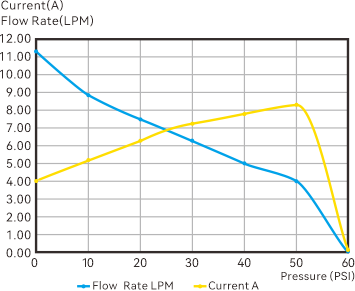

Performance Curve:



3.0GPM/60PSI

Pressure Flow Rate Current
PSI BAR GPM LPM APMS
0 0 3.00 11.35 3.9
10 0.7 2.34 8.86 5.1
20 1.4 1.98 7.50 6.2
30 2.1 1.64 6.22 7.2
40 2.8 1.34 5.06 7.8
50 3.4 1.05 3.98 8.3
60 4.1 0 0 0
Standards and Customization:
Content Standard parameters Customizable parameters
Voltage DC 12V DC 24/36/48V, AC115V/230V
Open flow 3.0GPM / 11.4LPM 2.0/2.2/2.6/2.8/3.0GPM
Shut-off pressure 60PSI / 4.2BAR 40/ 60PSI
Liquid Pesticide Freshwater Fuel Oil
Valve material Viton EPDM S-Viton
Diaphragm material TPV TPV S-Viton
Shipping Information:
Content Parameters
Unit Weight 0.30 Kg (0.66 lbs.)
Single Unit Packing Size (LxWxH) 9cmx21cmx07cm(1.42x827x028)
Single Unit Packing Weight 0.36 Kg (0.79 lbs.)
Outer Box Packing Size (LxWxH) 52.5 cm x 30 cm x 26.5 cm (20.67"x 11.81"x 10.43")
Number of Outer Boxes 20 units
Container Weight 8.7 Kg (19.18 lbs.)
Container Volume 0.042m³
