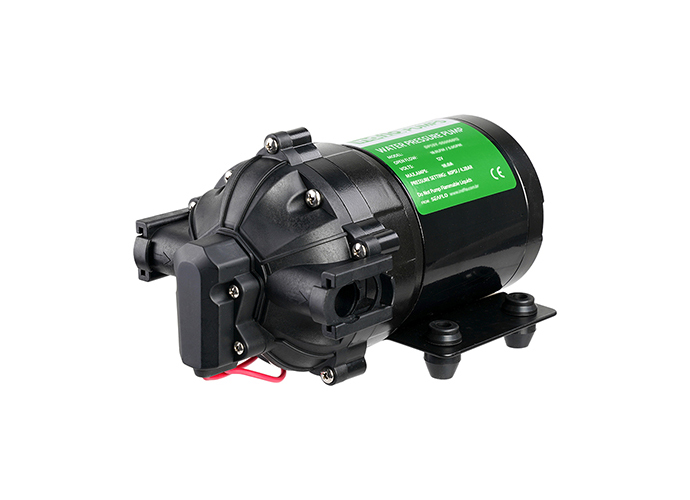

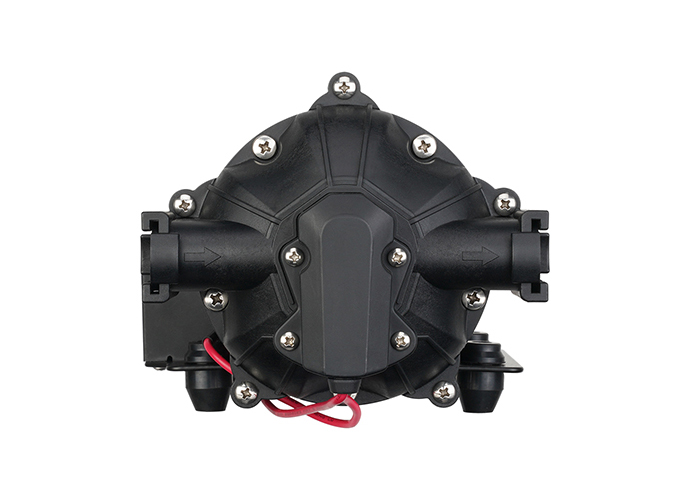

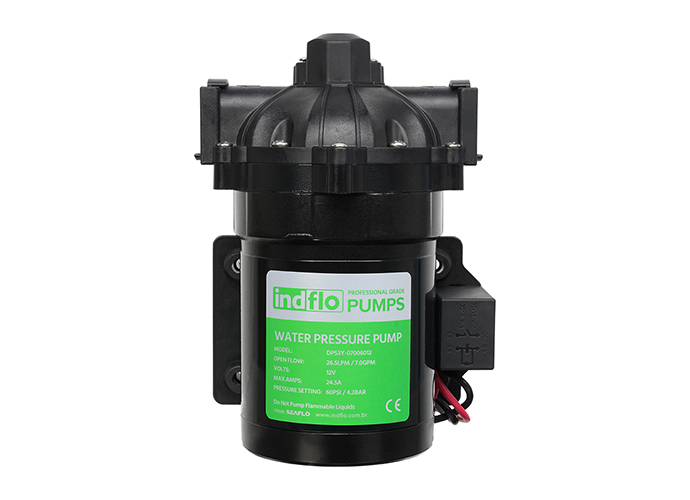

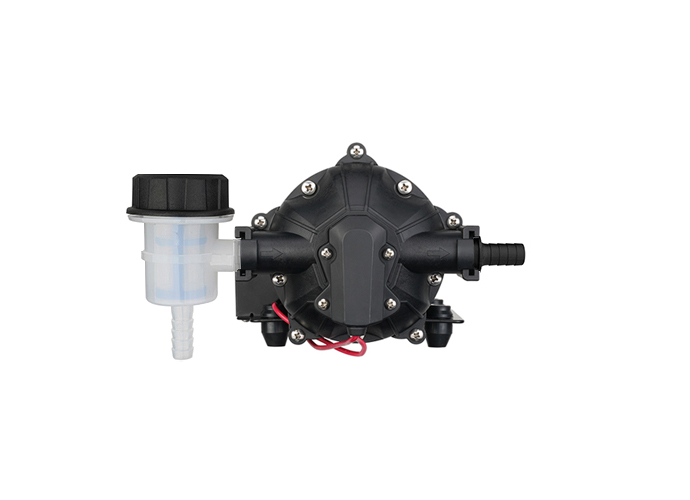

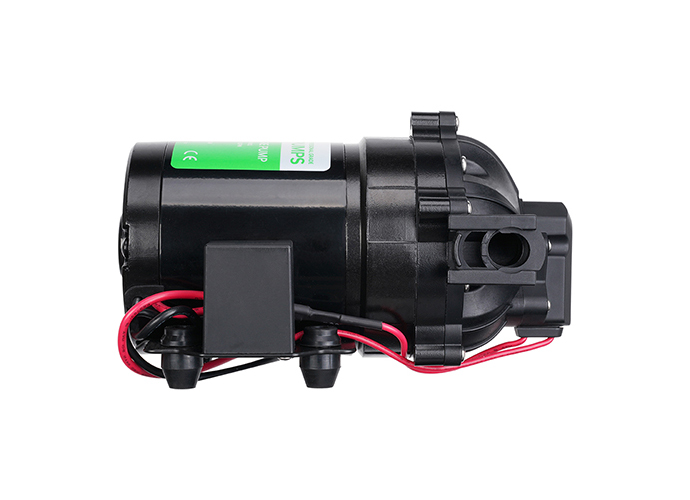

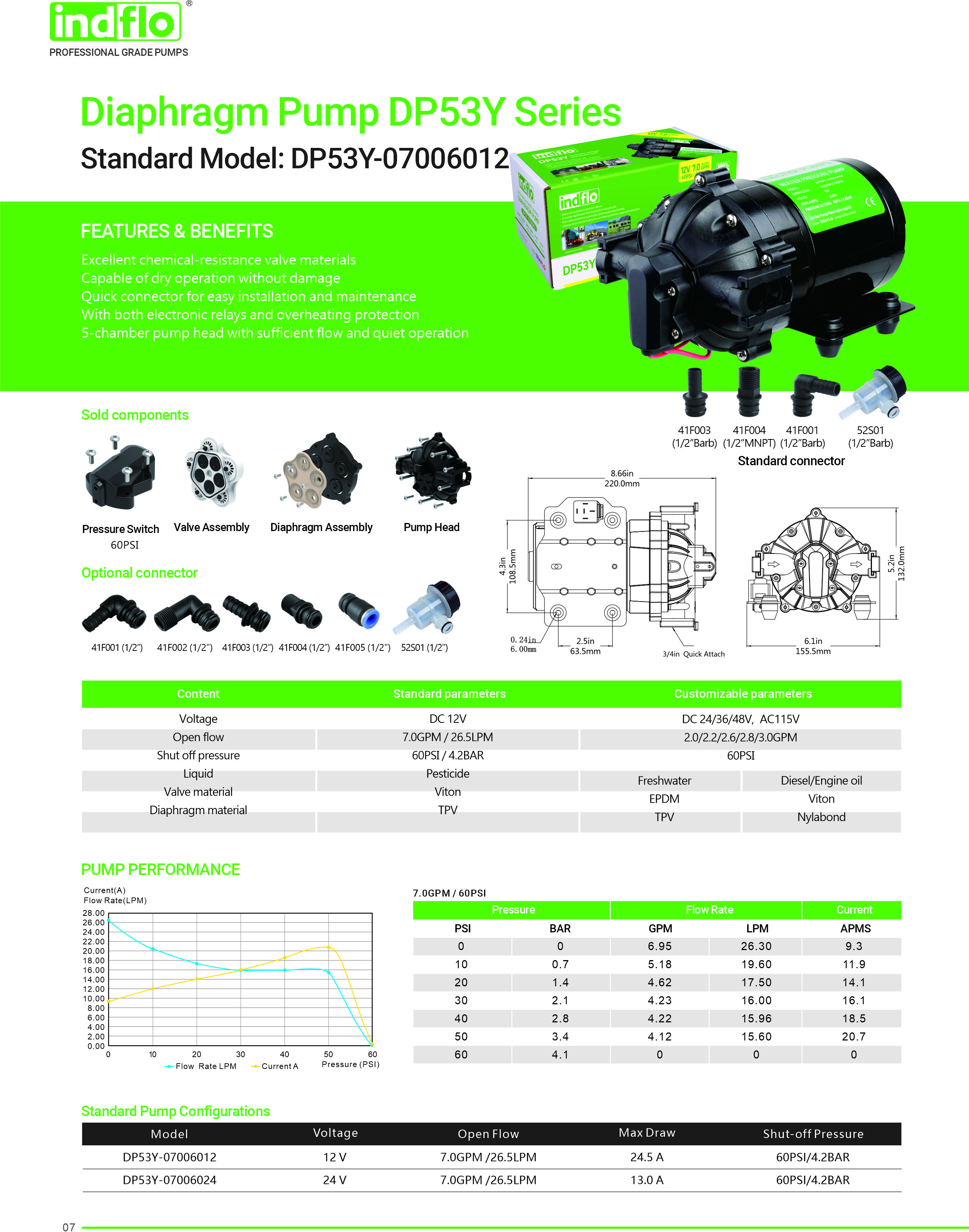

Diaphragm Pump DP53Y Series

High flow self-priming pumps, High flow booster pumps, Snow remover spray pumps, Food washer pumps, Solar water systems

Standard Model: DP53Y-07006012

Voltage:12V

Open Flow:7.0GPM/26.5LPM

Max Draw:24.5A

Shut-off Pressure:60 PSI / 4.2 BAR













Relevant Part

Product Details

Product Introduction:

INDFLO 53Y series on demand high performance diaphragm pump. It is a professional grade water pump that has been fully upgraded on traditional standard pumps. It is more suitable for professional scenarios and high performance requirements. Equipped with fuse, quick connection terminal, high-quality corrosion-resistant valve material, waterproof grade can reach IP54. Good self-priming ability, can dry run without damage. The whole machine adopts modular design and provides a variety of connectors options, which is easy to install and replace. 53Y series booster pump is small in size and low in power consumption. It can be widely used in liquid transfer, spraying, circulation, filtration and distribution.The flow and pressure can be customized on demand, with a maximum custom protection pressure of 70PSI depending on the working flow requirements.

Features and Advantages:
  • Excellent chemical-resistance valve materials
  • Capable of dry operation without damage
  • Quick connector for easy installation and maintenance
  • With both electronic relays and overheating protection
  • 5-chamber pump head with sufficient flow and quiet operation
Technical specification:
Model Voltage Open Flow Max Amps Shut-off Pressure
DP53Y-07006012 12V 7.0GP M/26.5LPM 24.5A 60PSI/4.2BAR
DP53Y-07006024 24V 7.0GP M/26.5LPM 13.0 A 60PSI/4.2BAR

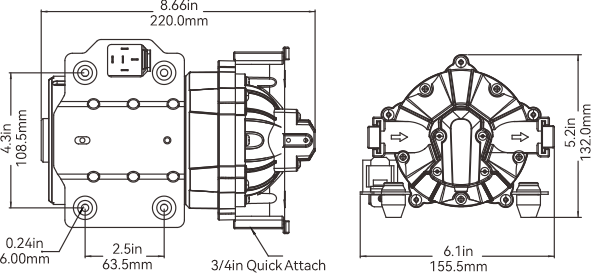

Dimension Parameter:

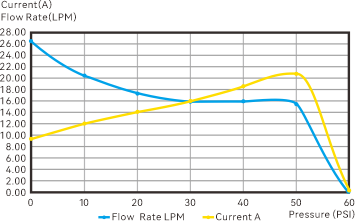

Performance Curve:



7.0GPM/60PSI

Pressure Flow Rate Current
PSI BAR GPM LPM APMS
0 0 6.95 26.30 9.3
10 0.7 5.18 19.60 11.9
20 1.4 4.62 17.50 14.1
30 2.1 4.23 16.00 16.1
40 2.8 4.22 15.96 18.5
50 3.4 4.12 15.60 20.7
60 4.1 0 0 0
Standards and Customization:
Content Standard parameters Customizable parameters
Voltage DC 12V DC 24/36/48V, AC115V
Open flow 7.0GPM / 26.5LPM 2.0/2.2/2.6/2.8/3.0GPM
Shut-off pressure 60PSI / 4.2BAR 60PSI
Liquid Pesticide Freshwater Fuel Oil
Valve material Viton EPDM S-Viton
Diaphragm material TPV TPV S-Viton

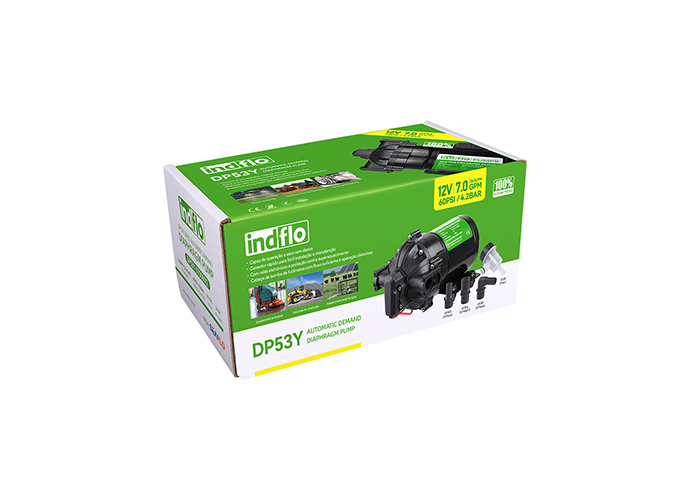

Shipping Information:
Content Parameters
Unit Weight 0.30 Kg (0.66 lbs.)
Single Unit Packing Size (LxWxH) 9cmx21cmx07cm(1.42x827x028)
Single Unit Packing Weight 0.36 Kg (0.79 lbs.)
Outer Box Packing Size (LxWxH) 52.5 cm x 30 cm x 26.5 cm (20.67"x 11.81"x 10.43")
Number of Outer Boxes 20 units
Container Weight 8.7 Kg (19.18 lbs.)
Container Volume 0.042m³
