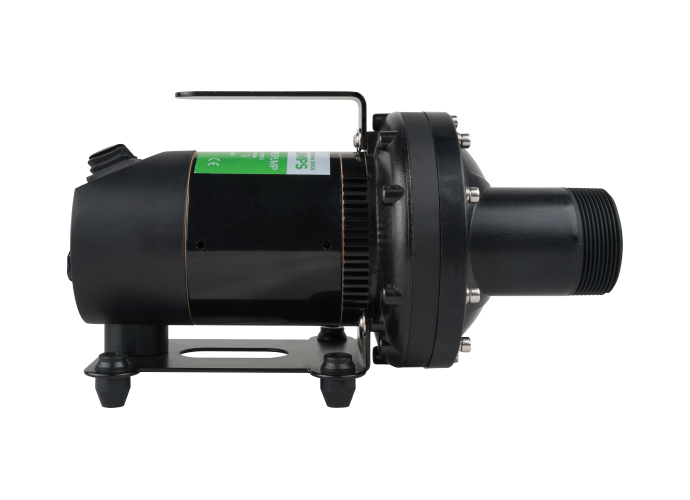

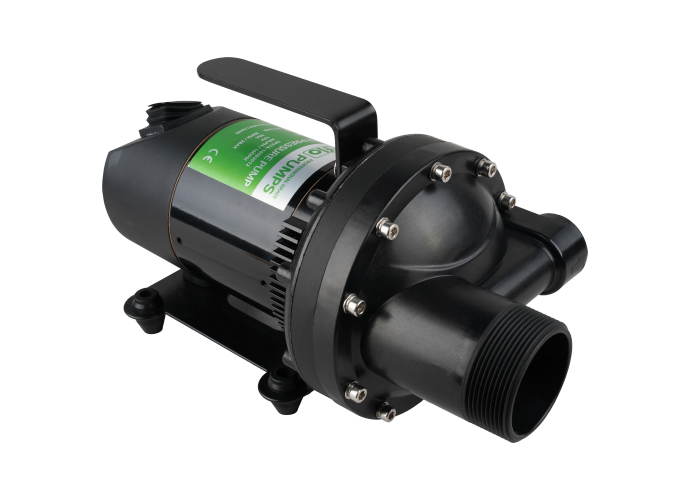

60L-Demand Transfer Pump DP57A Series 16GPM/60LPM

Demand Transfer Pump,60L

Standard Model: DP57A-16003012

Voltage:12V

Open Flow:16GPM/60LPM

Max Draw:30A

Relevant Part

Product Details

Product Introduction:

The INDFLO 57A series return pump is designed to meet diverse industrial needs. The pump's flexibility in material selection, with options for specialized EPDM elastomers or Viton components, ensures excellent chemical resistance and durability in a variety of applications. For power, choose from a 12-volt DC motor for convenient mobile or low-voltage equipment, or a 24-volt DC motor for standard electrical systems. The DC version comes with a 20-foot cord with alligator clips and a linear fuse for added safety during operation. The pump has a built-in bypass backflow feature that provides reliable self-protection against damage caused by abnormal pressure or flow conditions. It features a 2-inch Male National Standard Tapered Pipe Thread (MNPT) inlet and a 1-inch Female National Standard Tapered Pipe Thread (FNPT) outlet for easy connection to your existing plumbing system.

Features and Advantages:
  • Specialized EPDM elastics or Viton option

  • 12 volt DC or 24 volt DC motor option

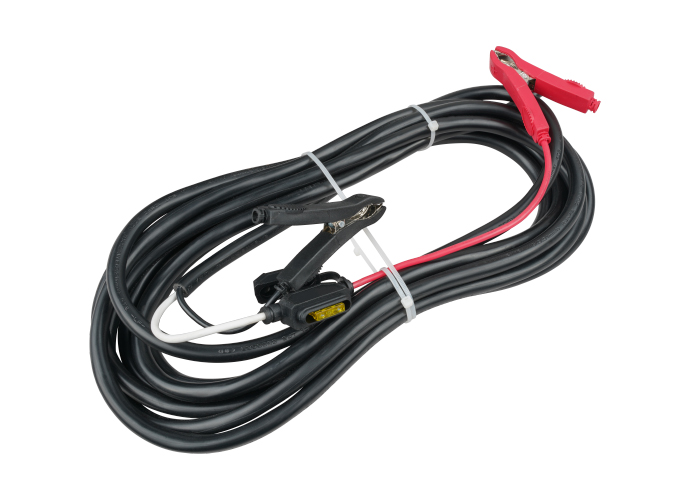

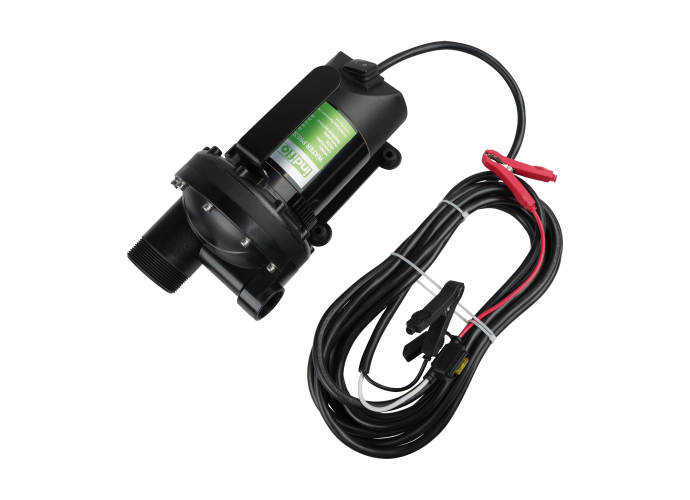

  • 20 foot wire with crocodile clip and straight fuse (DC only)

  • Built in bypass reflux function to protect the pump

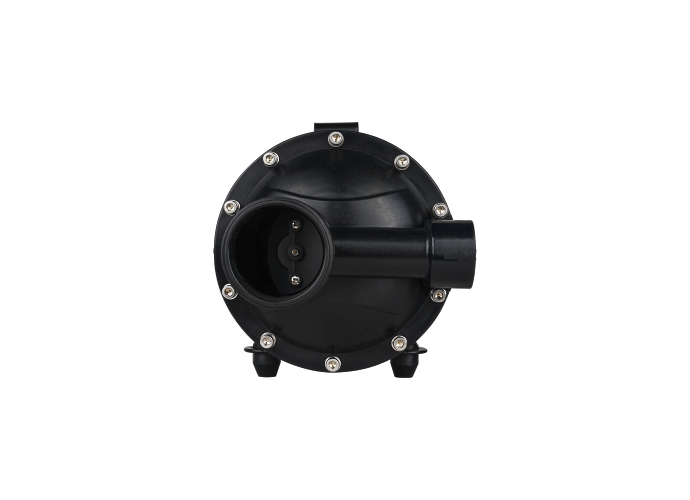

  • 2” MNPT inlet, 1” FNPT outlet
  • Capable of priming up to 3.6m

Technical specification:
Model Voltage Open Flow Max Amps
                     DP57A-16003012                  12V                      16GP M/60LPM                      30 A
                     DP57A-16003024                  24V                       16GP M60LPM                      16 A
Dimension Parameter:

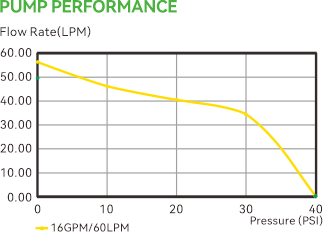

Performance Curve:


Standards and Customization:
Content Standard parameters Customizable parameters
Voltage DC 12V DC 24/36/48V, AC115V
Open flow 10GPM /40LPM 13/16GPM
Shut-off pressure 30PSI / 2BAR 30PSI
Liquid Pesticide Freshwater Fuel Oil
Valve material Viton EPDM S-Viton
Diaphragm material TPV TPV S-Viton
Shipping Information:
Content Parameters
Unit Weight 0.30 Kg (0.66 lbs.)
Single Unit Packing Size (LxWxH) 9cmx21cmx07cm(1.42x827x028)
Single Unit Packing Weight 0.36 Kg (0.79 lbs.)
Outer Box Packing Size (LxWxH) 52.5 cm x 30 cm x 26.5 cm (20.67"x 11.81"x 10.43")
Number of Outer Boxes 20 units
Container Weight 8.7 Kg (19.18 lbs.)
Container Volume 0.042m³

Document Download
