Home > Products > Spray Pump

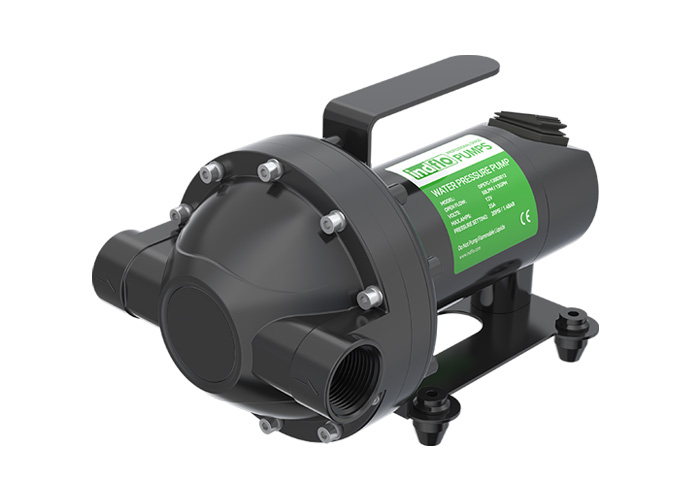

40L-Demand Transfer DP 57C Series

Demand Transfer Pump，40L

Standard Model: DP57C-10503012

Voltage：12V

Open Flow：10.5GPM/40LPM

Max Draw：22A

Shut-off Pressure：30 PSI / 2 BAR

Email Consultation Related Videos

Relevant Part

57F001

57F002

57F003

Product Details

Features and Advantages:
  • Specialty EPDM elastomeror Viton options available, Optional12Volt
  • DC or 24 Volt DC motor, Weather protected switch
  • Internal bypass protects pump during shutdown
  • 1 inch FNPT inlet&outlet convenient connection
  • Diversion capacity up to 2.5 meters
  • The maximum flow rate reaches 60L/M
Technical specification:
ModelVoltageOpen FlowMax AmpsShut-off Pressure
DP57C-1050301212V10.5GP M/40LPM22A30PSI/2BAR
DP57C-1050302424V10.5GP M/40LPM12A30PSI/2BAR

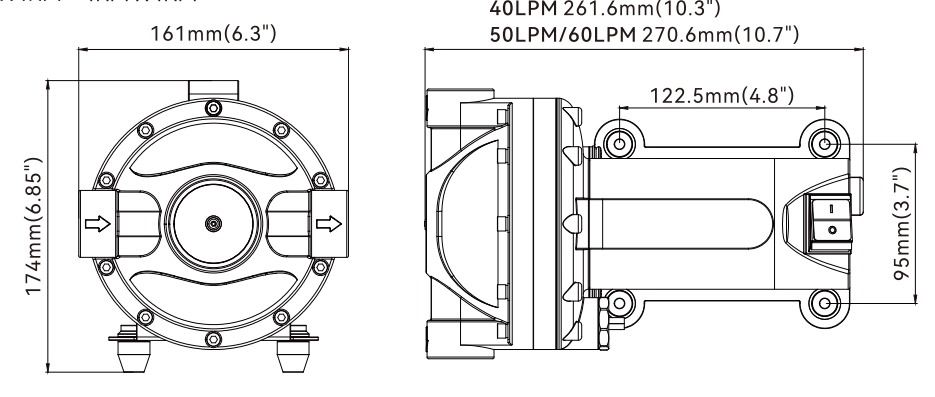

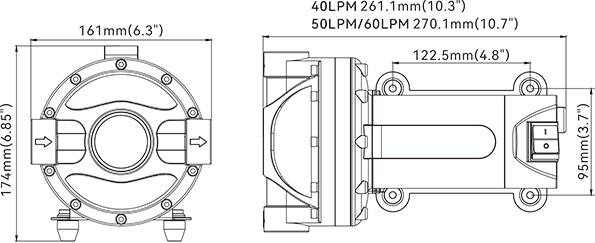

Dimension Parameter:

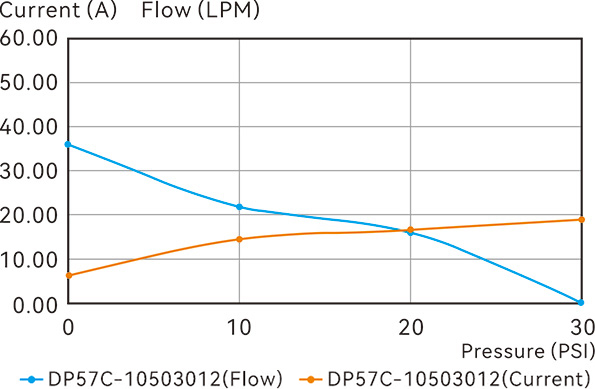

Performance Curve:

1.2GPM/60PSI

PressureFlow RateCurrent
PSIBARGPMLPMAPMS
0010.540

6.3

100.75.82014.4
201.44.21616.6
302.12.4918.9
Standards and Customization:
Content Standard parameters Customizable parameters
Voltage DC 12V DC 24/36/48V, AC115V
Open flow 10.5GPM/40LPM

13GPM/50LPM

16GPM/60LPM
Shut-off pressure 30PSI/2BAR 30PSI/2BAR
Liquid Pesticide Freshwater Engine Oil
Valve material Viton EPDM Viton
Diaphragm material TPV TPV Nylabond
Shipping Information:
