High Pressure Sprayer, Pesticide Sprayer, Garden Sprayer, Agricultural Automatic Sprayer
15G Series Products
Model: VS02-G1523
Tank Capacity: 15 GAL (50L)
Open flow: 1.2 GPM / 4.5 LPM
Shut-off Pressure: 60 PSI / 4.1 BAR
Spray gun: SFSG-S01
Matched Pump: DP23Y-01206012
Pressure Regulating Valve: NO

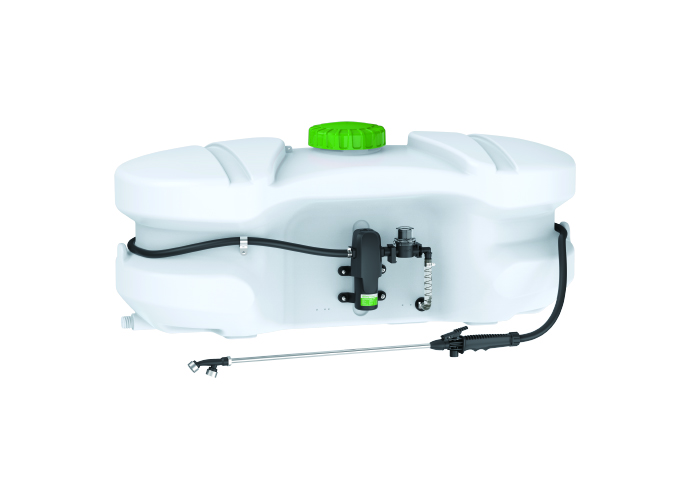

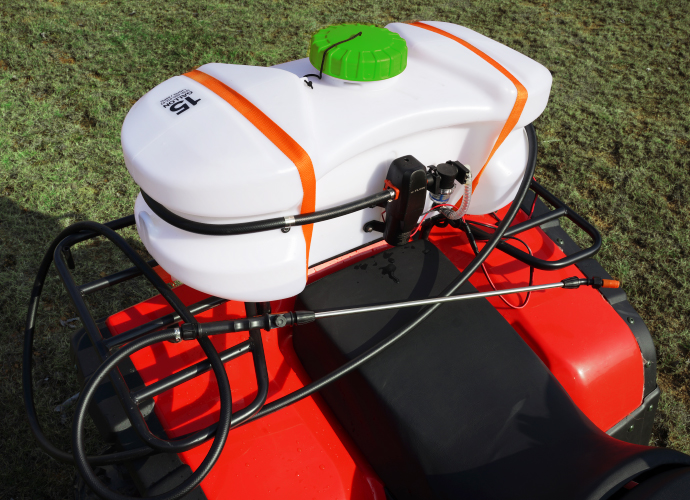

INDFLO vehicle-mounted sprayer is divided into 50L (15G) and 100L (25G) two volume series products, configured with different special agricultural pressurized spray pumps, with economic models, high-pressure models, high-flow models available to meet the needs of a variety of scenarios. The whole series of products are designed with 3 filters and external visual filter cartridges, which are easy to disassemble and clean, and the high-pressure and high-flow models are equipped with flow pressure regulating valves.
| Model | Tank Capacity | Open Flow | Shut-off Pressure | Spray Gun | Matched Pump | Pressure Regulating Valve |
| VS02-G1523 | 15 Gal(50 L) | 1.2 GPM/4.5 LPM | 60PSI/4.1 Bar | SFSG-S01 | DP23Y-01206012 | NO |
| Content | Parameters |
| Unit Weight | 5.45 Kg |

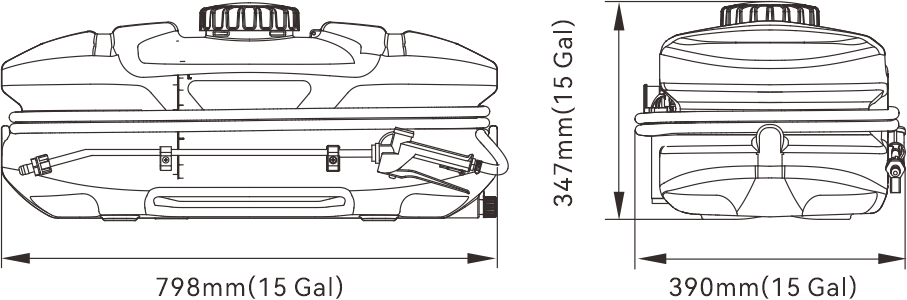

| Single Unit Packing Size (LxWxH) | 798 x390 x 347mm |
| Single Unit Packing Weight | 6.9Kg |
| Outer Box Packing Size (LxWxH) | 800 x 370 x 370 mm |
| Number of Outer Boxes | 1 unit/case |
| Container Weight | Net weight: 5.45KG Gross weight: 6.9KG |
