ATV Sprayer100L 2.0 GPM 150PSI

High Pressure Sprayer, Pesticide Sprayer, Garden Sprayer, Agricultural Automatic Sprayer

25G Series Products

Model: VS02-G2535

Tank Capacity: 25 GAL (100L)

Open flow: 2.0 GPM / 7.6 LPM

Shut-off Pressure: 150 PSI / 10.3 BAR

Spray gun: SFSG-D02

Matched Pump: D35Y-02015012

Pressure Regulating Valve: YES

Product Details

Product Introduction:

INDFLO vehicle-mounted sprayer is divided into 50L (15G) and 100L (25G) two volume series products, configured with different special agricultural pressurized spray pumps, with economic models, high-pressure models, high-flow models available to meet the needs of a variety of scenarios. The whole series of products are designed with 3 filters and external visual filter cartridges, which are easy to disassemble and clean, and the high-pressure and high-flow models are equipped with flow pressure regulating valves.

Features and Advantages:
  • Agricultural spray pump with multiple protections
  • High quality HDPE blow molding barrel
  • Triple filtration protection
  • Equipped with 16ft agricultural special hose and battery cable
  • Equipped with flow pressure regulating valve and pressure gauge
  • New appearance and shape, more suitable for use and more convenient for transportation
Technical specification:
Model Tank Capacity
Open Flow
Shut-off Pressure
Spray Gun
Matched Pump
Pressure
Regulating Valve

VS02-G2535 25Gal(100L) 2.0 GPM/7.6 LPM 150PSI/10.3 Bar SFSG-D02 DP35Y-02015012 YES

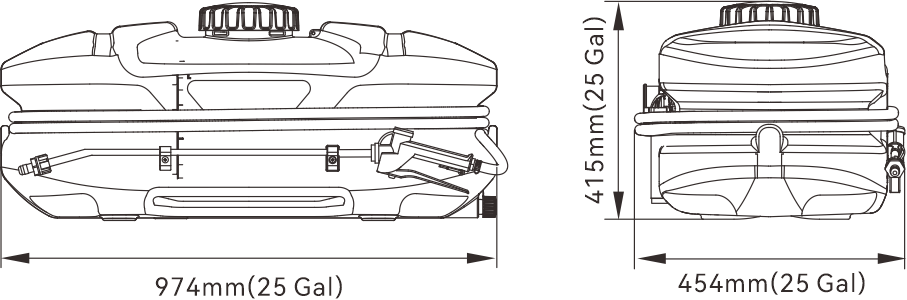

Dimension Parameter:


Shipping Information:
Content Parameters
Unit Weight 10.1KG
Single Unit Packing Size (LxWxH) 974 x445 x415 mm
Single Unit Packing Weight 12.8KG
Outer Box Packing Size (LxWxH) 975  x 425 x 440 mm
Number of Outer Boxes 1 unit/case
Container Weight Net weight: 10.1KG  Gross weight: 12.8KG
