ATV Sprayer100L 2.4 GPM 60PSI

High Pressure Sprayer, Pesticide Sprayer, Garden Sprayer, Agricultural Automatic Sprayer

25G Series Products

Model: VS02-G2543

Tank Capacity: 25 GAL (100L)

Open flow: 2.4GPM / 9.0 LPM

Shut-off Pressure: 60 PSI / 4.2 BAR

Spray gun: SFSG-D02

Matched Pump: D43Y-02406012

Pressure Regulating Valve: YES

Product Details

Product Introduction:

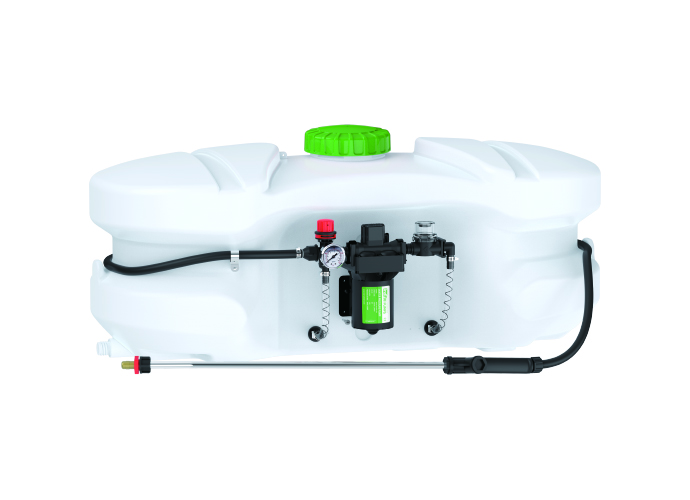

INDFLO vehicle-mounted sprayer is divided into 50L (15G) and 100L (25G) two volume series products, configured with different special agricultural pressurized spray pumps, with economic models, high-pressure models, high-flow models available to meet the needs of a variety of scenarios. The whole series of products are designed with 3 filters and external visual filter cartridges, which are easy to disassemble and clean, and the high-pressure and high-flow models are equipped with flow pressure regulating valves.

Features and Advantages:
  • Agricultural spray pump with multiple protections
  • High quality HDPE blow molding barrel
  • Triple filtration protection
  • Equipped with 16ft agricultural special hose and battery cable
  • Equipped with flow pressure regulating valve and pressure gauge
  • New appearance and shape, more suitable for use and more convenient for transportation
Technical specification:
Model Tank Capacity
Open Flow
Shut-off Pressure
Spray Gun
Matched Pump
Pressure
Regulating Valve

VS02-G2543 25Gal(100L) 2.4 GPM/9.0 LPM 60PSI/4.2 Bar SFSG-D02 DP43Y-02406012 YES

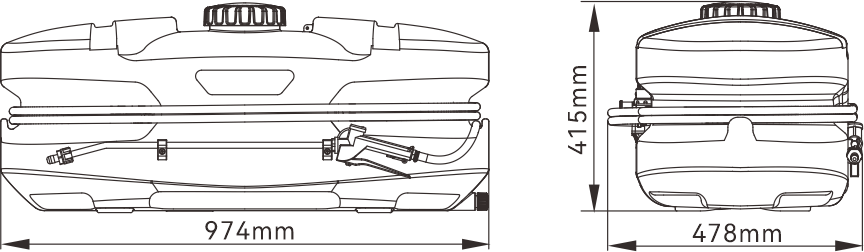

Dimension Parameter:


Shipping Information:
Content Parameters
Unit Weight 9.6KG
Single Unit Packing Size (LxWxH) 974 x478 x415 mm
Single Unit Packing Weight 12.3KG
Outer Box Packing Size (LxWxH) 975  x 475 x 440 mm
Number of Outer Boxes 1 unit/case
Container Weight Net weight: 9.6KG  Gross weight: 12.3KG
